The site-ready timber-beam formwork with a system-grid and no frame imprints
With its practical element size-grid, rapid stackability and slippage-free inter-element connections, FF20 is the right choice for many projects where stricter requirements are made regarding the concrete finish.
Delivered to your site ready for use
in pre-assembled standard elements
fast forming, even when tough specifications are made regarding the concrete finish, by combining the advantages of timber-beam formwork with the grid-related advantages of a framed formwork system
adapts easily to any structure, thanks to its practical element size-grid
can be rented, so is also economical for small numbers of repeat uses
project-specific adaptation possible, as it can be faced with any type of form-ply
Maximised utilisation of equipment
as there are only a few different element widths
25 cm increment grid simplifies planning, forming operations and logistics on the site
lowers commissioning quantities and rental costs because of its easy adaptability
thanks to its practical inter-element connections
quick and safe vertical stacking facilitated by integral centring stacking flange
Comprehensive workplace safety
with compatible ladderways and working platforms
safe vertical access with the Ladder system XS
workplace safety on all sides with the Platform system Xsafe plus
practical accessories – such as panel struts, lifting/repositioning devices etc. – make for safe, easy handling of the formwork

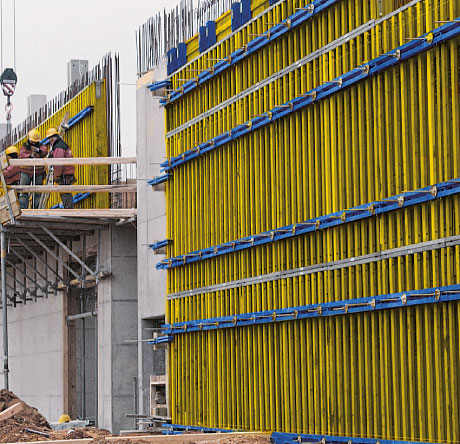

An optimal concrete result was achieved for the new construction of the G3 Shopping Resort Gerasdorf shopping centre thanks to Wall formwork FF20.
The FF20 elements
ingeniously co-ordinated panel formats, for getting maximum utilisation from the formwork
25 cm grid, with only four widths and three heights of element, simplifies planning, forming operations and logistics on the site
accessories can be easily attached to the transverse walings across the entire width of the element – with no obligatory fixing points
faced as standard with three-ply sheets; custom form-facing is possible whenever needed
FF20 standard elements can be used in conjunction with stacking elements to obtain practical formwork heights of up to 6.50 m. The 2.75 m high elements are symmetrical and can also be used upside-down.
