Composite forming carriage
The adaptable travelling composite bridge-deck formwork from a single supplierv
- small number of versatile, combinable component parts
- ease of assembly
- fast closing and opening of formwork
- high safety standards for rapid working
- low dead weight and high load capacity
- pouring in a weekly cycle
- entire unit is travelled in one piece
- is adaptable to slender structures as well
- high-calibre solutions for all steel composite bridges, planned and supplied by a one-stop supplier
- operationally reliable, as the forming carriages, shoring towers and working platforms are all designed to work together seamlessly
![v]()

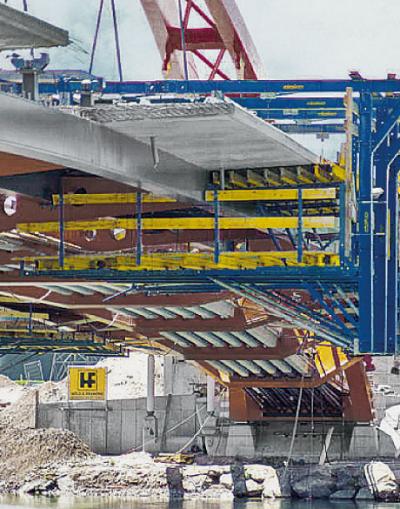

The new System beam 5.00m NG allows the Composite forming carriage to be adapted to the structure geometry even more flexibly.
References
System
Simple system grid

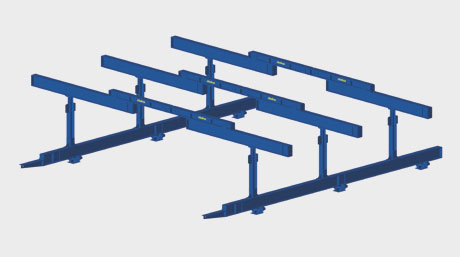

In the longitudinal direction of the bridge, the increment-grid of the Doka composite forming carriage is dictated by a 5 m long and 2 m high longitudinal girder. In the transverse direction, two transverse frameworks joined by an adjustment zone (compensation girders) permit any desired dimension. The adjustable spindle struts, and the large number of bolting positions in the steel girders, together make for optimum adaptability of the composite forming carriage. The new System beam NG allows more flexibility with the transverse frameworks in the longitudinal. This means that the transverse frameworks can be better positioned to take account of loads or geometrical parameters. In this way, the Composite forming carriage can be adapted to the structure geometry even more flexibly.
![1]()
![2]()
Safety on the structure

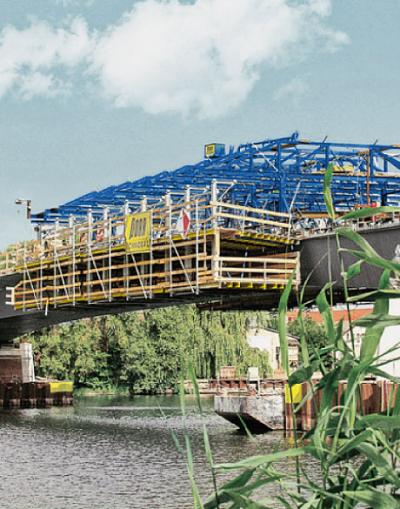

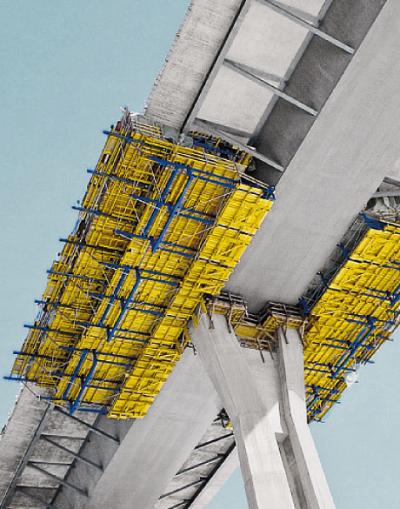

With its suspended finishing-work platform levels, the Doka composite forming carriage provides a high standard of safety. Only a few extra safety components are needed to create the ideal basis for an all-round enclosure.
Roller supports for inside formwork

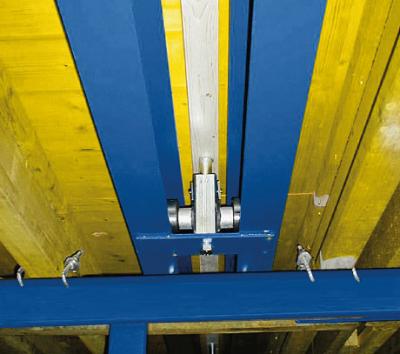

- for forward-jacking the inside formwork using the 'roller-drawer principle'
![3]()
![4]()
Unlimited adjustability options
- cantilever arm formwork can be adjusted in all directions by means of spindle struts
- formwork is easy to close and open, using a two-part anchoring system
Formwork systems for composite bridge-decks
![5]()

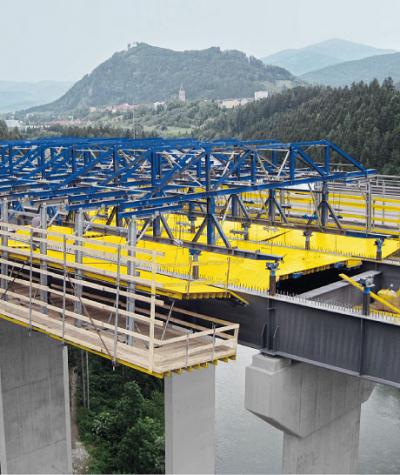

Overslung composite forming carriage

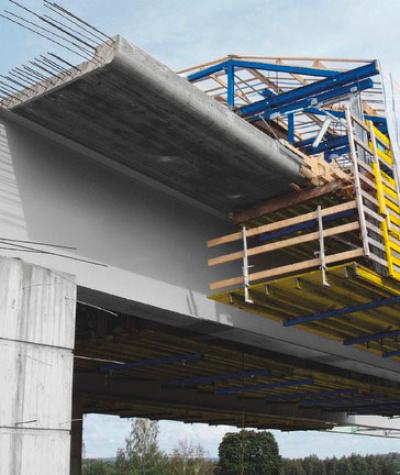

This, the standard type of carriage, is a fast and safe way of constructing the concrete decking of composite bridges (on steel superstructures).

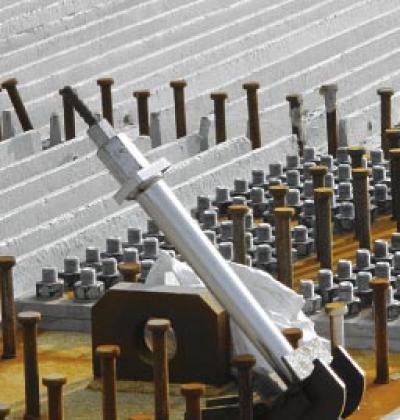

Underslung composite forming carriage

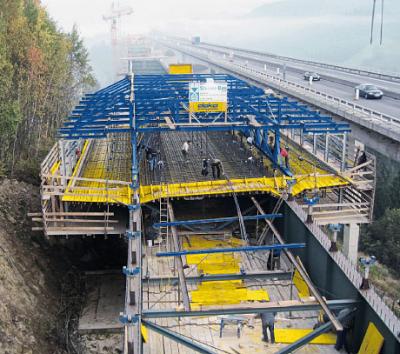

By providing barrier-free access to the entire roadway deck, this type of carriage ensures a high standard of safety, especially on wide bridge cross-sections with diagonal struts.
![6]()
![7]()
Bridge formwork ParaTop
For shorter superstructures and medium-length bridges involving only a few repositioning cycles, the crane-shiftable Bridge formwork ParaTop is available.
![8]()
Cost-saving custom solutions
On request, the Doka Formwork Experts will also plan and design constructions for situations where space is severely limited, or for unusual cross-sections.
