Safety: Harnessed

FreeFalcon – the mobile fall protection anchor

Download leaflet and marker
Download Doka AR App

FreeFalcon - the mobile fall protection

Construction projects get more and more challenging, but at the same time they have to be completed more rapidly and more economically. Sacrificing safety, however, is wholly unacceptable. The current system-independent safety regulations in the slab-formworking sector only conditionally satisfy the requirements for occupational health and safety and ergonomics. The FreeFalcon with its safety unit closes this gap. It is the ideal synthesis of safety and freedom of movement.

All-round safety

due to integrated safety details

Quickly ready to use

thanks to easy handling

Working in safety at the drop-off edge

without trip hazards because the anchor point is always above head height

Immediately ready, no anchoring to the structure

no planning, installation work or costs for anchoring

Unrestricted freedom of movement

with 360° fall protection and a working radius of 10 m

Horizontal repositioning is easy

a job for one person with a pallet lifter

Complies with Suva (CH), BGBau (D) and BauV (AT)

No effects on the structure

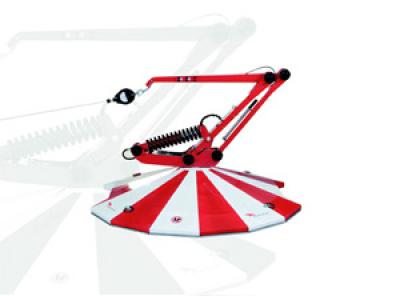

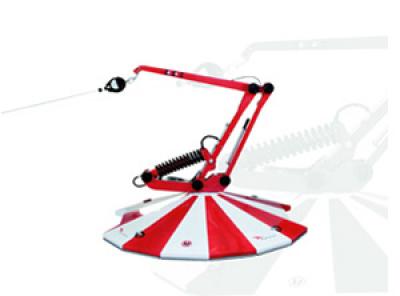

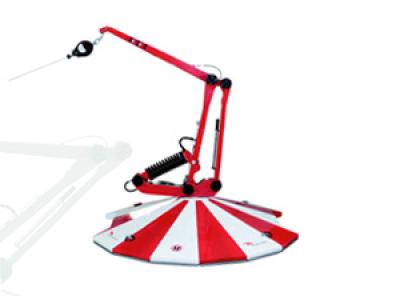

FreeFalcon FreeFalcon

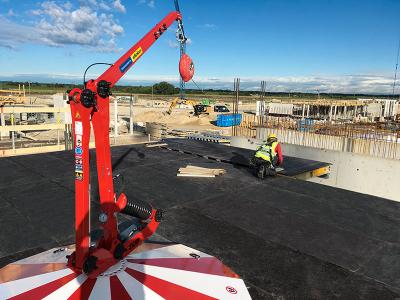

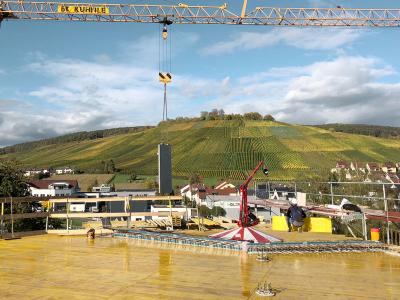

The FreeFalcon protects construction crew members whenever work at drop-off edges is temporarily unavoidable.

FreeFalcon PCC FreeFalcon PCC

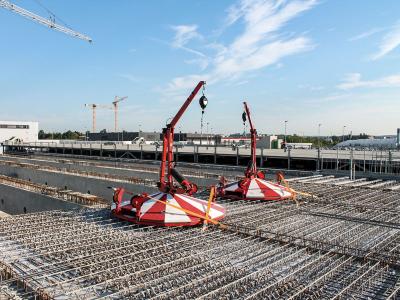

FreeFalcon PCC has been specially developed for use on sectional slabs and secures workers on the slab edge while assembling the sectional slabs.

Product features

FreeFalcon and FreeFalcon PCC

  • Diameter:
    2.25 m
  • Height:
    2.35 m
  • Weight:
    FreeFalcon: 450 kg / FreeFalcon: PCC 595 kg
  • Standard:
    FreeFalcon: DIN EN 795:2012 type E
    FreeFalcon PCC: DIN EN 795:2012 type B
  • Certified by Dekra technical inspectorate

Here's how it works:


A fall arrester with cable for the safety harness is mounted on the mobile fall protection mast with base mast and extension arm.


As soon as the permissible payload is exceeded, the safety unit trips: the extension arm retracts and draws the anchor point for the safety harness closer.


At the same time a lock engages so that the device can no longer swivel; the user's fall is safely arrested.
