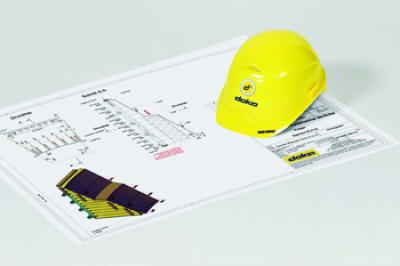

Assembly drawings

Assembly drawings created and approved by Doka provide you with detailed arrangement of individual parts for a selfassembled fixed formwork unit. The assembly sequence is not included.

  • piecelists for Doka items and consumables including necessary information on materials
  • required sizes, check sizes and labelling including elevations and details
  • information on maximum dimensions and weight for organising transport and matching crane capacities
