Available in for a maximum service load of 5,000 kg, Doka Loading platforms are especially suitable for residential and commercial projects to enhance the material flow on site. They arrive on site fully pre-assembled and are installed on the structure in the shortest possible time.
The all-round railing is fully closed and to provide a high level of safety for the site crew and the environment below. Doka Loading Platforms offer enhanced flexibility in positioning, allowing for placement even on round structures with a radius of 7 m or larger.
Efficiency
Improved materials logistics on the site
- Easy access from outside by crane for materials handling on all storeys
- Reduction in crane times if loading platforms are installed on several storeys
- Loading platform arrives pre-assembled on site – just swing the side railings and the floor props into position and pin them in place
- As a complete unit, it repositions quickly in a single crane lift
Safety
Working safely at any structure height
- Railing all round is fully closed for a high level of safety
- Safe foot traffic, platform decking is anti-slip galvanised chequer plate
- No gap between edge of structure and loading platform, because the platform decking rests on the structure slab
- Safe horizontal and vertical repositioning due to integral crane slinging points and forklift pockets
Universality
Suitable for various construction jobs and structure geometries
- Ideal for highrise construction – from new builds through reconstruction to building demolition
- Free positioning at the edge of the structure, because the loading platform is clamped in place between the slabs - anchoring through the slab is an alternative
- Usable on round structures with radius 7 m or larger
Available sizes and service load limits
Doka loading platform 5.0 to 3.0 to Width 2.95 m 2.45 m Cantilever length 4.50 m 3.20 m Max. service load 5,000 kg 3,000 kg Usable area 10.9 m² 6.7 m² References
![Loading platform]()
The ramp ensures safe, easy wheeling across the edge of the structure.
![Loading platform]()

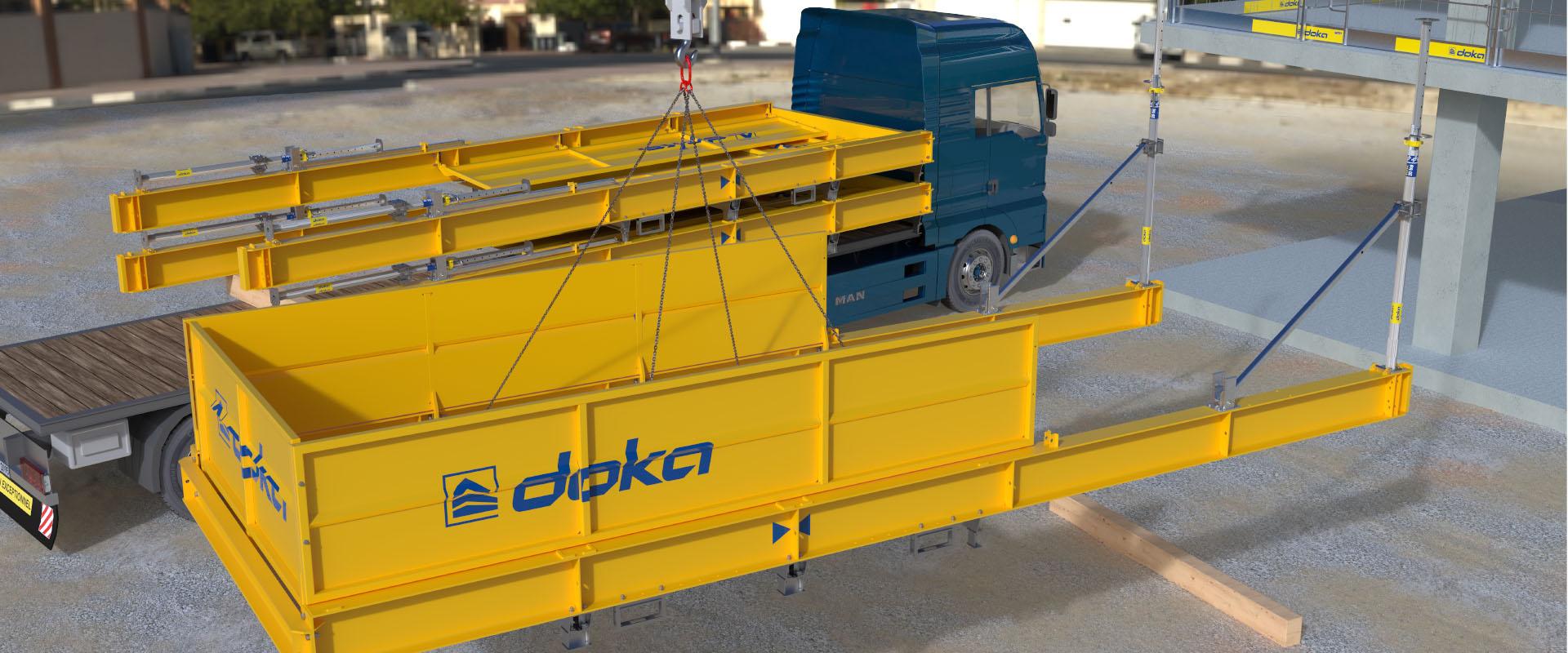

The Doka loading platform arrives pre-assembled on site and is readied for use in only a few simple steps.
![Loading Platform]()
The clamping between the slabs allows free positioning of the loading platform at the edge of the structure.
