Hydraulic climbing formwork SKE plus

The crane-independent climbing formwork for structures of any shape and height

For every type of structure, the modular design concept of the crane-independent Hydraulic climbing formwork SKE provides an economical solution for any type of structure, for steady progress irrespective of weather conditions and maximum safety for the entire construction crew.

Videos

Maximum safety
in all phases of the work

The safe way to climb great heights, because

  • the climbing scaffolds are anchored to the concrete at all times
  • of the wide working platforms, enclosed on all sides
  • the climbing operations can be managed with complete precision using radio remote control
  • the Ladder system XS or a stair tower can be integrated to provide safe workplace access

The very highest cost-efficiency
for your project

A cost-effective solution is ensured by

  • the easy way in which the system accommodates varying structure geometries and inclinations
  • the practice-oriented project planning provided by Doka
  • reduced start up time with Doka pre-assembly service

Rapid working
in a controlled sequence

Flexible cycling

  • as even large formwork gangs can be raised in tandem, independently of the crane
  • even in all weather and wind conditions (up to 40 mph)
  • because service loads can stay on the platforms while these are being raised
  • because it is possible to integrate concrete placing booms and lift at the same time
DokaAR App

Experience this system in AR

The DokaAR App America allows users to view Doka Formwork in Augmented Reality.

To the DokaAR App

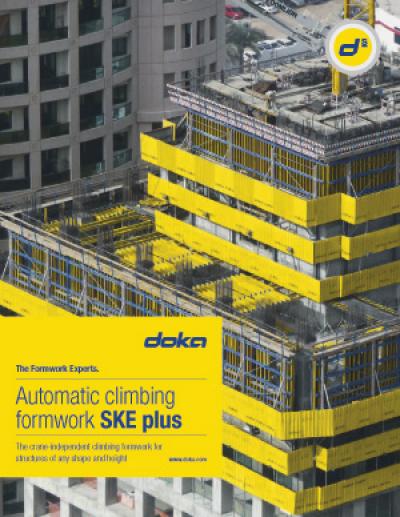

Cover Leaflet

Leaflet Automatic climbing formwork SKE plus

PDF 1.3 MB

Download

References

System

Hydraulic climbing formwork SKE50 plus

Hydraulic climbing formwork SKE50 plus, with a load capacity of 5 tons per bracket, is the ideal solution for many different types of climbing assignment. This novel, innovative system is the perfect way of forming high-rise cores, bridge piers and pylons, and also building-facades.

Hydraulic climbing formwork SKE100 plus

The high load capacity of 10 tons per bracket and the tall formwork-platform scaffolds allow work to proceed simultaneously, making it possible to separate the forming and rebar operations. The brackets are extremely strong, which permits wide, variable spacing and also makes it possible to lift concrete placing booms.

Safe choice, right system

The Hydraulic climbing formwork SKE is definitely the safe choice of system. Its wide, fully railed-in working platforms, which can be completely enclosed over the entire area if desired, give your site the ultimate in safety.

Utilisation

The self-climbing shaft formwork

The "Hydraulic climbing formwork SKE50 plus shaft" system gives a huge boost to the speed of craneless forming operations on inside-shafts. Optimum adaptability, straightforward formwork operation, combinability with the Stripping corner I and re-useable anchoring components – are just some of the many advantages of this novel system.

20 hydraulic climbers at the push of a button

Each hydraulic unit can simultaneously raise as many as 20 hydraulic climbers up to the next casting section.
