Column formwork Framax Xlife
The formwork for rectangular and square CIP columns
Versatile usage
made possible by holes in the form-facing
- enables column cross-sections of up to 105 cm x 105 cm, by adapting in a 5 cm grid
- practical accessories make the formwork quick to assemble and reset
Reduced commissioning quantities and costs
by using panels that are already on-site anyway
- maximum utilisation obtained from the formwork by using the universal panels for columns, corners, stop-ends and wall junctions
- long-lived, thanks to high-grade Framax Xlife sheet and hot-dip galvanised frames
- universal panels can also be used in normal wall formwork by simply closing off the holes in the form-facing
Comprehensive workplace safety
with compatible ladderways and working platforms
- safe vertical access with the Ladder system XS
- workplace safety on all sides with column-formwork platforms
- practical accessories – such as panel struts, lifting/repositioning devices etc. – make for safe, easy handling of the formwork
![]()

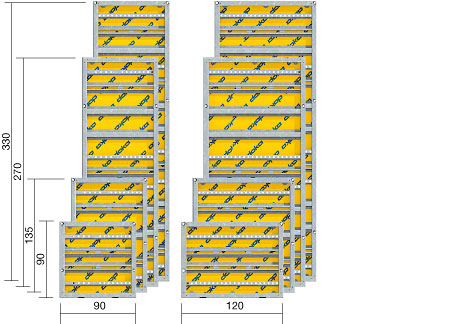

Framax Xlife universal panels are available in widths of 90 cm and 120 cm and in panel heights of 90 cm, 135 cm, 270 cm and 330 cm.
