Column formwork Frami Xlife
The lightweight formwork for rectangular and square CIP columns
Versatile usage
made possible by holes in the form-facing
- enables column cross-sections of up to 80 cm x 80 cm, by adapting in a 5 cm grid
- practical accessories make the formwork quick to assemble and reset
Reduced commissioning quantities and costs
by using panels that are already on-site anyway
- maximum utilisation obtained from the formwork by using the universal panels for columns, corners, stop-ends and wall junctions
- long-lived, thanks to high-grade Frami Xlife sheet and hot-dip galvanised frames
- universal panels can also be used in normal wall formwork by simply closing off the holes in the form-facing
Comprehensive workplace safety
with compatible ladderways and working platforms
- safe vertical access with the Ladder system XS
- workplace safety on all sides with bracket-based platform construction
- practical accessories – such as panel struts, lifting/repositioning devices etc. – make for safe, easy handling of the formwork
![]()

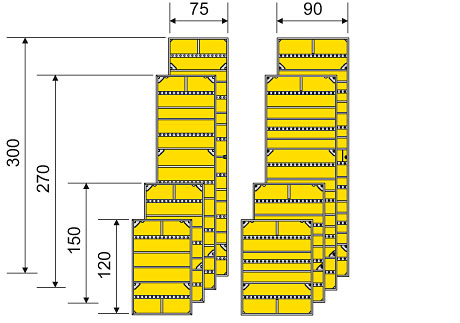

Frami Xlife universal panels are available in widths of 75 cm and 90 cm and in panel heights of 120 cm, 150 cm, 270 cm and 300 cm, for column cross-sections of up to 80 cm x 80 cm, in a 5 cm grid.
