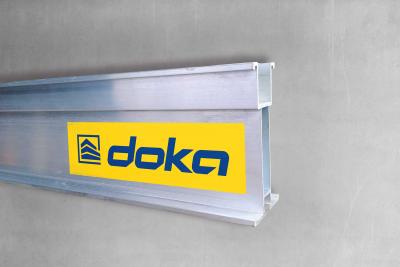

The Doka Alu Box Beam 150 combines a slim 150 mm profile with impressive load-bearing strength, making it the ideal choice for many slab applications. With an integrated nailing strip and continuous T-slot, the Doka Alu Box Beam 150 offers versatile adaptability for efficient, safe and flexible jobsite use.
- permitted bending moment M = 16.8 kNm
- permitted shear force Q = 27.3 kN
- rigidity E x l = 729 kNm²
- weight per linear meter =
6.3 kn withouer nailing insert
7.5 with nailing insert - overall height = 17.5 cm
- up to one-third fewer floor props for floor slabs, as wider beam-spans are possible
- up to 50 percent fewer primary beams in the superstructures of fully loaded 10 kip shoring towers or Staxo 100 load-bearing towers, thanks to high load capacity
- optimised site logistics and lower freight costs, as fewer items are needed
- high numbers of re-use cycles made possible by wear-resistant aluminium
- the integral end-to-end fixing slot prevents damage to the beams
- integrated, high-grade plastic nailing strip makes it easy to fix formwork sheeting
