Multi-functional
- with only one type of upright for all types of sideguards
- for formwork, stairways and structure edges
- thanks to its different connectors covering all applications
Ergonomically engineered
- with a logical set-up procedure that makes the system quick and self-explanatory to use
- for easy handling
- thanks to sturdy lightweight construction
- with captively integrated parts, which also cuts costs
This ingenious system
- provides full safety up to 1.20 m, with only one upright
- can be extended to 1.80 m simply by adding a specially developed bottom-fixed height extender for the upright
- covers all applications perfectly with just two types of upright, obviating the need to keep many different types available onsite
Rent it to get experience with it, and purchase as needed
- hot-dip galvanised and extremely sturdy
- EN 13374-compliant equipment bearing the GS Mark
- detailed User Information booklet
- dimensioning diagrams including wind-loads
System
Handrail post XP 1.20m
The Handrail post XP 1.20m features 'use-anywhere' versatility, covering all types of edge protection. Either protective gratings, wooden planks, scaffold tubes or gap-free boarding can be used as the safety barriers.
![Edge protection system XP]()
![Edge protection system XP]()
Easy-Click function
The Easy-Click function makes it quick and easy to mount and dismount the Handrail post XP 1.20m without tools, and locks automatically to prevent accidental lift-out.

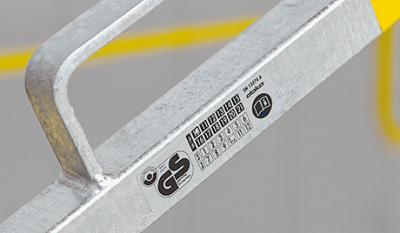

Tested safety
The edge protection system is EN 13374 compliant, as certified by a GS Mark awarded by an external institute. Detailed User Information booklets and dimensioning diagrams, including wind-loads, are available.
![Edge protection system XP]()
![Edge protection system XP]()

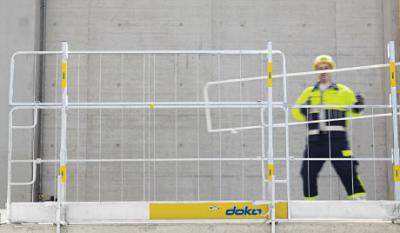

Protective grating XP
The integral hollow frame gives the hot-dip galvanised Protective grating XP great stability and a long lifespan. The integral toeboard and the handles make for safety and flexibility, particularly when work is being carried out at slab-edges and on facades.
Bottom-fixed height extenders for the uprights, for grating heights of up to 1.80m
The system can be extended to a grating height of 1.80 m simply by adding specially developed bottom-fixed height extenders for the uprights. The distances between the uprights do not need to be narrowed for this.
![Edge protection system XP]()
![Edge protection system XP]()
A third less storage and transport volume
The design of the system makes for very simple and space-saving warehouse and site logistics. The system is compact to transport and easy to handle.

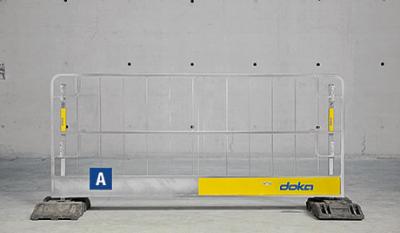

Individualised advertising vehicle
The Protective grating XP is available with the customer's logo and corporate colour on request, turning it into a high-visibility advertising vehicle on the site.
(A) Your logo could appear here.
![Edge protection system XP]()
![Edge protection system XP]()

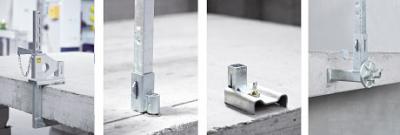

Connector components
The system is rounded off by practical connectors to meet the requirements of any situation – concrete floor-slabs, balconies, sheeting walls, stairways, bridge superstructures, wall and floor formwork or platforms.
Utilisation

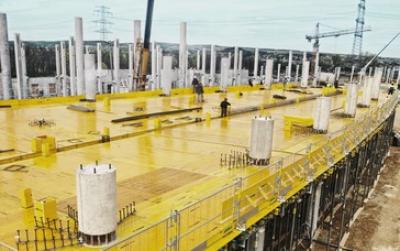

Edge protection system XP on the formwork
- all spacings and lengths of grating are sized to fit Doka formwork systems, and are statically optimised
- after every forming cycle, the component geometry may mean that different requirements need to be met: XP is easy to adapt
- fluid transition from flexible deployment on the formwork to long-term use on the structure shell
![Edge protection system XP]()
![Edge protection system XP]()
Safeguarding slab-edges and platforms
The connector component used for safeguarding exposed slab edges or the narrowsides of platforms is the Railing clamp XP 40cm. The constructional design of the clamp ensures that the toeboard is held flush with the slab or the formwork, so that no small items can fall off. For bridge superstructures, a version is available with a clamping range of 2 cm to 85 cm.

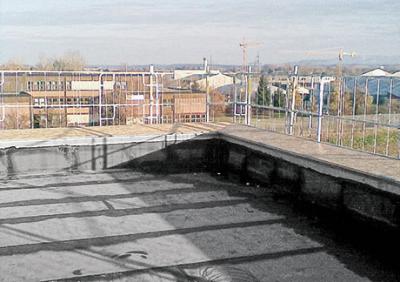

Flat roofs and parapets
Fall-arrest barriers for e.g. guttering and other rooftop work can also be put up on flat roofs and parapets using Floor end-shutter clamps and Handrail-posts XP 1.20m.
![Edge protection system XP]()
![Edge protection system XP]()

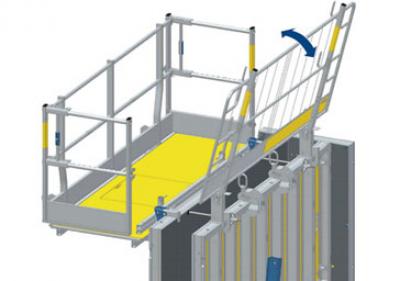

Using on wall formwork
The Framax adapter XP is used to mount the side railings to the opposing formwork. The advantage of this solution is that the side railings can be attached to the formwork while it is still flat on the ground, and will stay permanently fixed to the formwork both while it is being repositioned and when it is in the cleaning position (with the form-ply facing upwards). During pouring, the railings can be tilted backwards by 15 degrees.

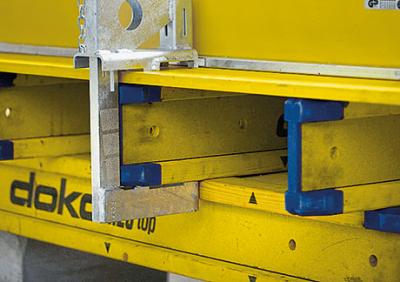

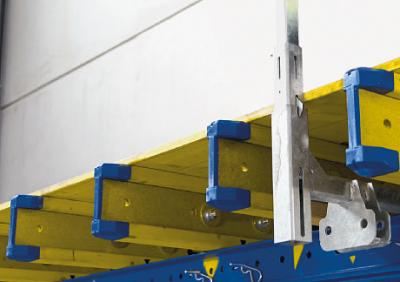

Using on Dokamatic tables
The Dokamatic adapter XP is used to attach a Handrail post XP to a Dokamatic table. The adapter is suitable for all sizes of table and has an integral lowering function.
![Edge protection system XP]()
![Edge protection system XP]()
Edge protection system XP on the structure shell
- optimised connector components for both building-construction and civil-engineering applications
- easy to adapt, thanks to wide distances between uprights
- protective gratings can easily be raised for mounting the exterior facade
- the protective gratings are easy to remove, e.g. before equipment is transported
- easy, liftout-proof floor anchorages using Screw sleeve 20.0, for pressing into soft concrete

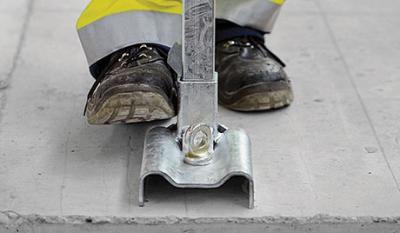

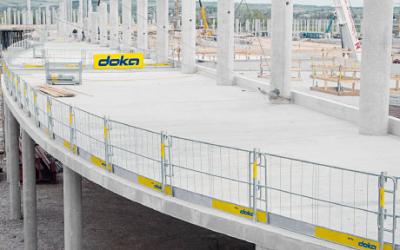

Safeguarding exposed slab edges

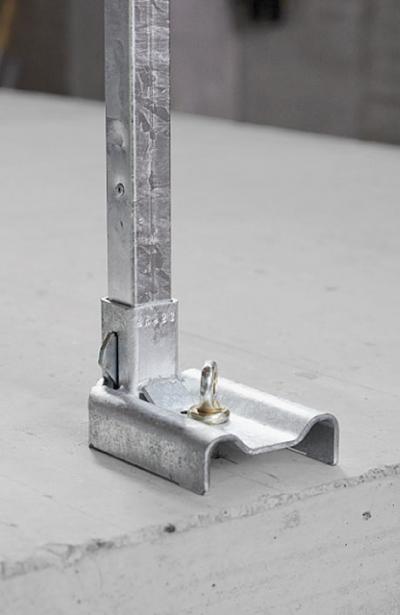

The Screw-on shoe XP and Screw sleeve 20.0 are pressed into the still-fresh concrete, meaning that the floor-slab is readied for the Edge protection system XP as part of the concreting operation.
![Edge protection system XP]()
![Edge protection system XP]()

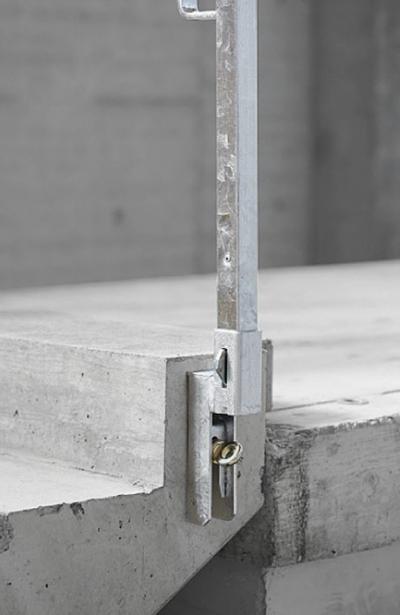

Stairways
The Step bracket XP is fixed to the end face of the stairway and allows the tiles or flagstones which are being laid on the steps to project out by as much as 4 cm.

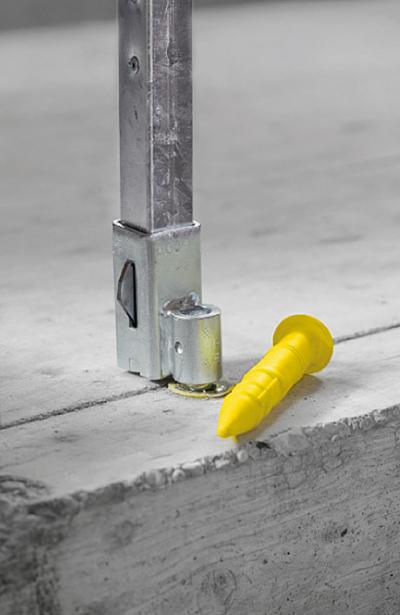

Fixing to concrete floor slabs
Used in conjunction with the Express anchor 16x125mm, the Handrail-post shoe XP makes it possible to retrofit the side railings.
![Edge protection system XP]()
![Edge protection system XP]()

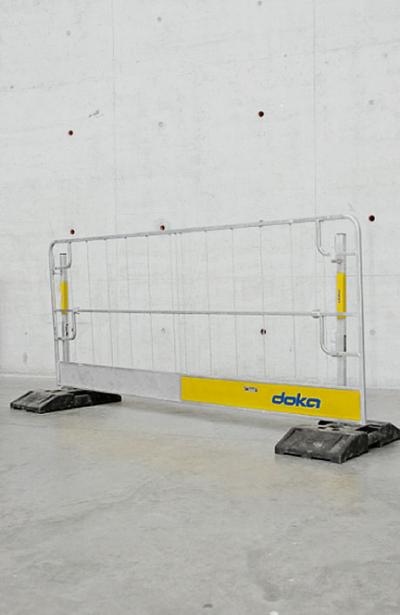

Demarcation fence
When combined with standard fence-feet baseblocks, the Edge protection system XP can also be used to demarcate different working areas within a jobsite.
Safety on parapets

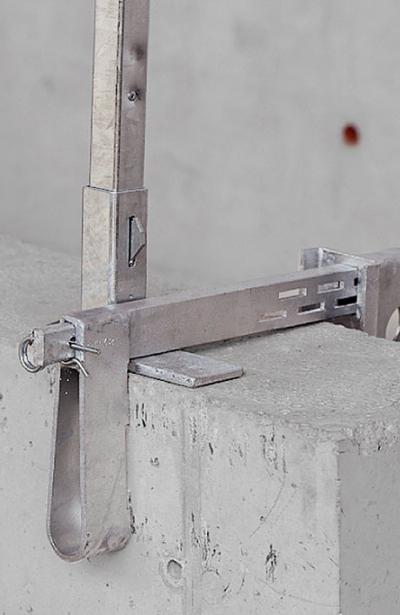

The Parapet adapter XP is connected to the Railing clamp XP 40cm or the Railing clamp XP 85cm; together with the Handrail post XP 0.60m, it then provides optimum edge protection on parapets.
![Edge protection system XP]()
![Edge protection system XP]()

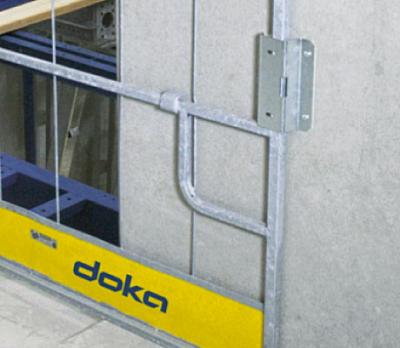

Protection at load-bearing masonry walls
The Protective grating holder XP is used for securing Protective gratings XP of all types to masonry walls of sufficient load-bearing strength (e.g. as fall protection in front of doorway openings, shafts, balconies, etc.).

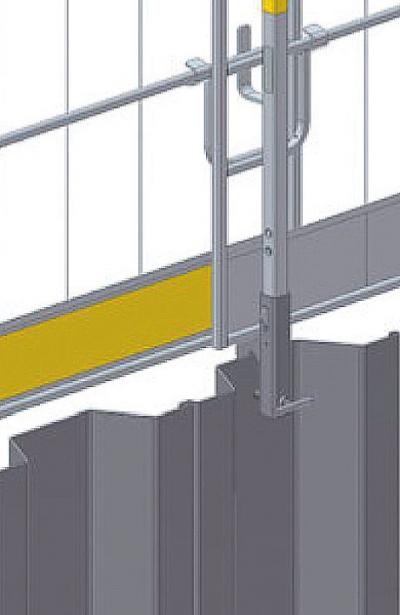

Safety barriers on sheeting walls
Sheet pile adapter XP is used in combination with Protective grating XP, scaffold tubes or guard-rail boards for erecting safety barriers on sheeting walls.
![Edge protection system XP]()
![Edge protection system XP]()

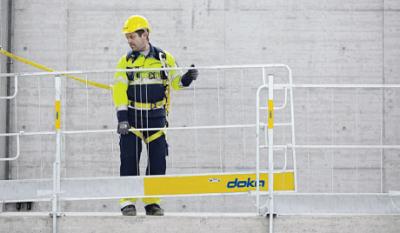

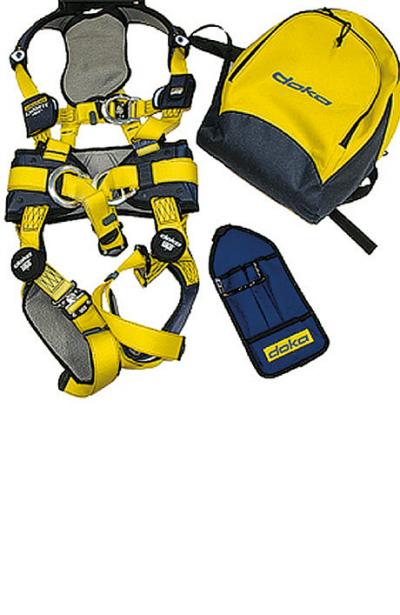

Doka personal fall-arrest set
With the Doka personal fall-arrest set you can protect your crew in situations where guardrail systems such as side handrail clamping units or personal fall-arrest sets are not feasible. Introductory training required.
